Pipe Davits

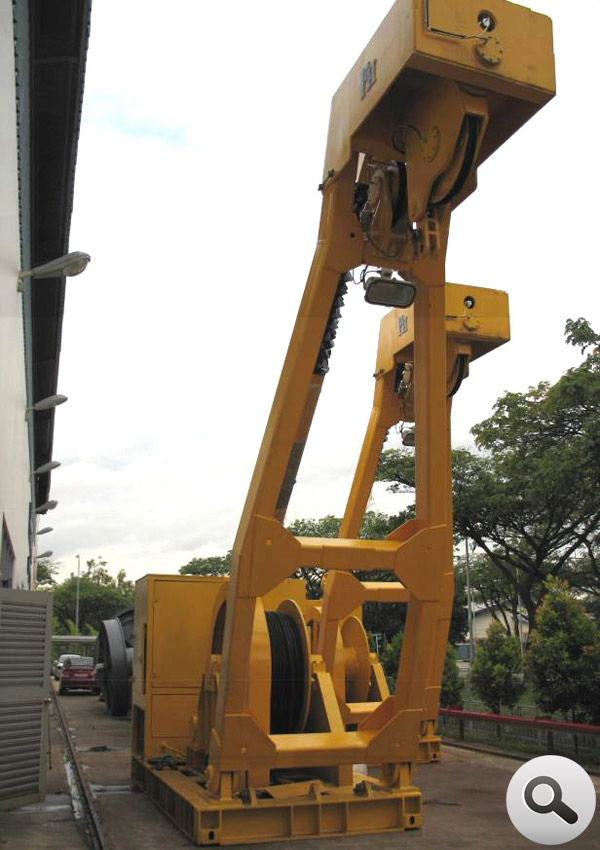

Pipe Handling Davits

The Pipe Handling Davit system consists of six davits, each with 50 mt tension capacity. The system is used for repairs or modifications of pipelines.

Each davit consists of following main components:

  • Hydraulic winch
  • A-frame with hook block
  • Hydraulic power pack
  • Electric control console.
Technical Specifications:-
  • Lifting Capacity: 50 ton (Max.)
  • Lifting Speed: 2.5m/min.
  • Hoisting Travel Height: 200 meter
  • Working Pressure: 3300 psi
  • Luffing Type: Hydraulic Cylinder
  • Luffing Time: 2min.
  • A-frame outreach: 2.5 meter
  • Brake type: Fail-safe, hydraulic-release multi-disc brake
  • Operating modes: Manual
  • Sheave swing angle: ±30° (max)

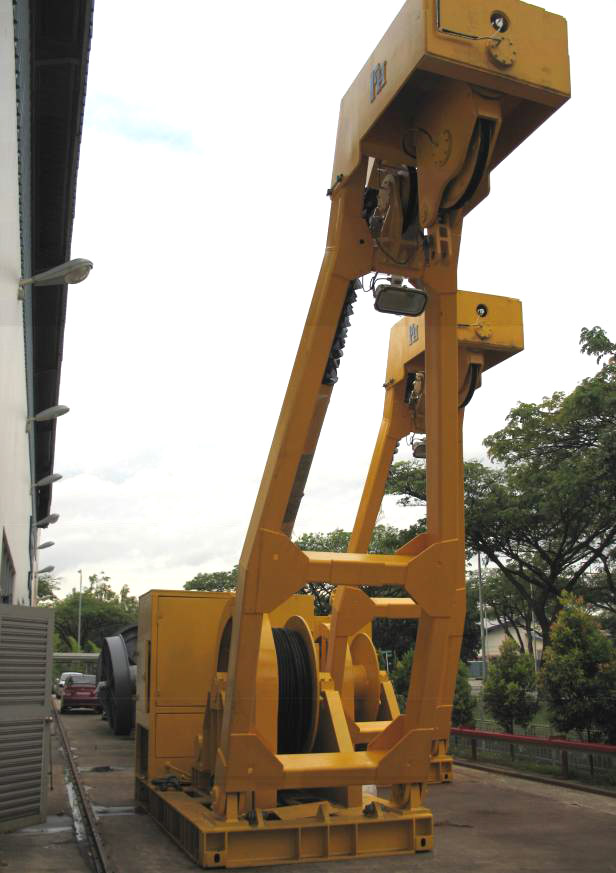

Pipe Handling Davits
