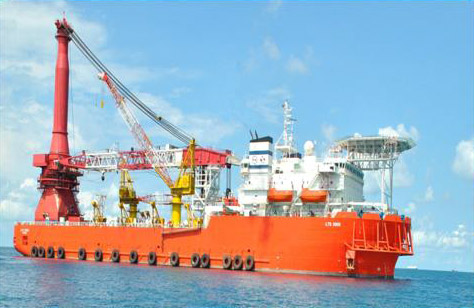

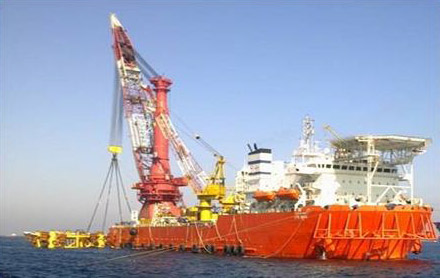

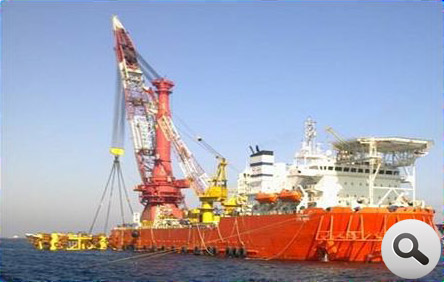

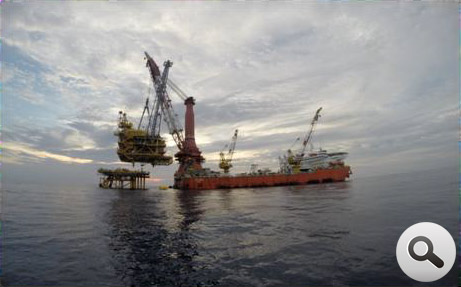

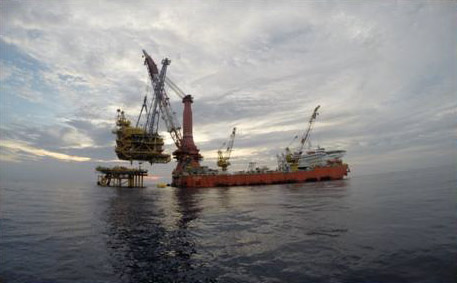

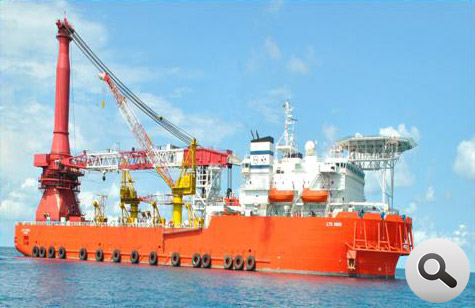

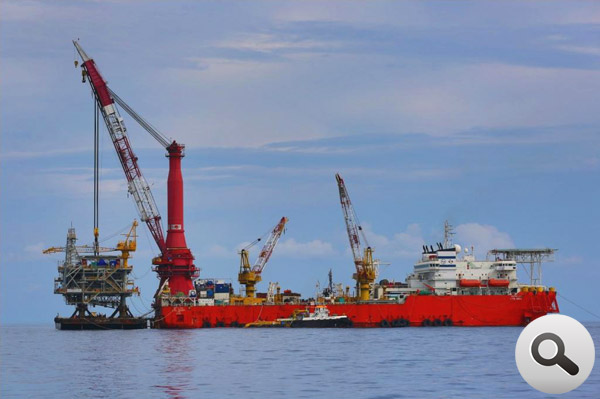

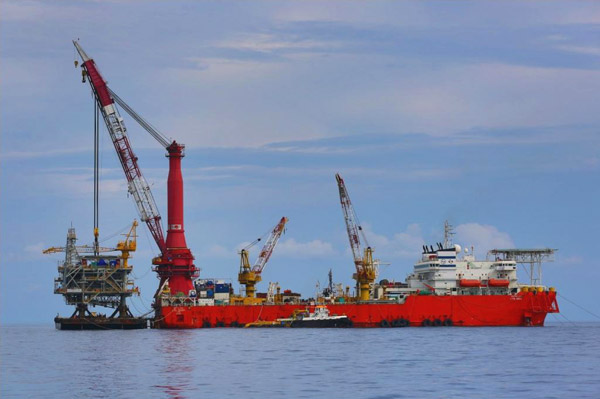

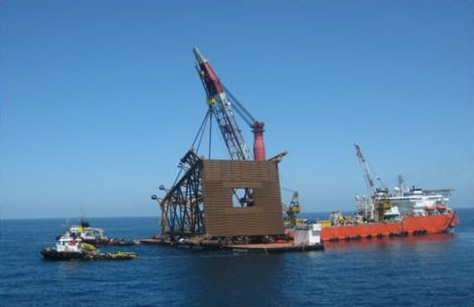

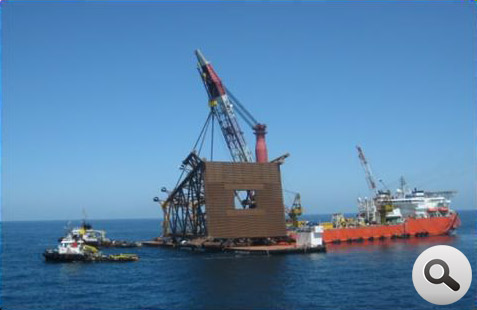

LTS3000 is a first Indian flag, dual class (ABS & IRS) self propelled offshore construction vessel built with state of the art technology at ASL Shipyard, Singapore.
|
CLASSIFICATION / REGISTRATION
|
|
ABS Notation: +A1(E) +AMS Heavy Lift cum Pipelay Vessel (DPS-1)
|
|
IRS Notation: SUL (Sarvoutam Langer), IY (Indian Yantra)
|
|
HULL
|
|
Length Overall
|
161.53m
|
|
Length between Perpendiculars
|
155.73m
|
|
Breadth Molded
|
37.80m
|
|
Depth at side to Main Deck
|
15.00m
|
|
Depth at side to Freeboard deck
|
9.10m
|
|
Minimum Operational Draught
|
4.00m
|
|
PROPULSION
|
|
Azimuth Thrusters
|
2 x 2400 kW
|
|
Bow Tunnel Thruster
|
1 x 1250 kW
|
|
Speed
|
6 – 8 knots
|
|
POWER GENERATION
|
|
Main Diesel Generators
|
3 x 2600 kW
|
|
Emergency and Harbor Generator
|
1 x 1000 kW
|
|
MOORING SYSTEM
|
|
10 point mooring system, consisting of 6 anchors forward and 4 aft. The ten anchors are 12.5 mt each complete with pigtails, pendant wires and buoys. The system is well integrated with computer navigation and positioning
systems.
|
|
Dimensions
|
10 x 63 mm (2.5”) x 2000 m (Length)
|
|
Min. Break Strength
|
2460 kN
|
|
Winch Speed
|
36 m/ min
|
|
Winch Pull
|
150 t
|
|
ACCOMODATION
|
|
Accomodation Quarters cater for total of 290 people. All cabins have en suite shower and lavatories.
|
|
COMMUNICATION AND NAVIGATION
|
- Satellite communication system, Fleet broadband, VHF, UHF, SSB, FM and RADAR (X & S Band)
|
- Gyrocompass (combined with DP)
|
|
|
- Global Maritime Distress Safety System (GMDSS)
|
- Engine Alarm System (EAS)
|
- Automatic Identification System (AIS)
|
- Long Range Identification and Tracking (LRIT)
|
- Electronic Chart Display and Information Systems (ECDIS)
|
- Computer LAN network with Internet
|
|
MEMBERSHIPS
|
|
IMCA : International Maritime Contractors Association
|
|
IPLOCA : International Pipeline & Offshore Contractors Association
|
|
CRANES
|
|
Main Crane: Amclyde Model PC-42 HVY fully revolving post crane
|
|
BOOM LENGTH
|
|
Main Block
|
71.66 m (235ft)
|
|
Auxiliary Block
|
82.33 m (270ft)
|
|
Whip Block
|
91.48 m (300ft)
|
|
HOOK CAPACITY
|
|
Main Hook, revolving
|
2722 mt @ 27 m radius
|
|
Main Hook, fixed over stern
|
2722 mt @ 27 m radius
|
|
Auxiliary Hook, revolving
|
725 mt @ 53 m radius
|
|
Whip Hook, revolving
|
110 mt @ 95 m radius
|
|
Personnel Lifting (as per API 2C, 6th Edition)
|
5 mt @ 72 m radius
|
|
Deck Cranes: Pedestal Crane, Diesel Hydraulic Drive
|
|
Model: 20/10 K – 2 x 50 mt @ 29 m
|
|
Boom Length: Main Hook, 46.8 m, Auxiliary Hook: 50 m
|
|
PIPE LAYING EQUIPMENT/ S LAY
|
|
Coated Pipe Outer Diameter Capacity
|
6” to 60”
|
|
Pipe Tensioner
|
2 x 100 mt
|
|
STATIONS
|
|
Welding: 6, NDT: 1, Joint Coating: 2, Repair: 1
|
|
STINGER
|
|
Shallow Water S Lay Stinger, 1 No. Stinger Control Station
|
|
DAVITS
|
|
6 Pipeline Davits with rated capacity of 50mt each
|
|
A&R WINCHES
|
|
1 x 200 T (Maximum Tension)
|
|
Speed: 25 m/ min
|
|
Drum Capacity: 1600 m of 88 mm rope
|
|
HELIDECK
|
|
For maximum weight of 12.8 mt as per CAP 437
|
|
DECK CAPACITY
|
|
Deck Load
|
10 t/sq.m
|
|
TANK CAPACITY
|
|
Water Ballast
|
11686 Tons
|
|
Fuel Oil
|
2334 Tons
|
|
Fresh Water
|
3064 Tons
|
|
Lubricating Oil
|
77 Tons
|
|
Technical Fresh Water
|
1600 Tons
|
|
SAFETY EQUIPMENT
|
|
Life Saving and Fire Fighting Equipment onboard are as per of vessel Class requirement
|
